Transformation of speed coupler

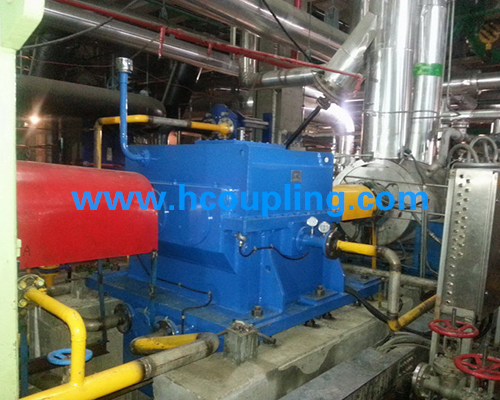

Transformation of R16K400M speed adjustable coupler

Transformation method 1: direct coupling, frequency conversion speed regulation, external lubricating oil station;

Transformation mode two: change gear box, pre pump to transform and configure new speed motor;

Transformation mode three: retaining the coupling function, external oil station to restore the oil supply system;

The reform contents include: the field surveying and mapping before the project transformation, the reform scheme design, the implementation of the overall project transformation, and the commissioning and operation after the transformation.

A speed coupler is a mechanism that uses a medium to transmit the motive force to a mechanical device from a motive. A non rigid coupling with a liquid as a working medium, also known as a coupling. Light outside and the pump wheel is fixedly connected into the sealed cavity, filling working fluid to transfer the power; when the prime mover driven by the input shaft rotary pump wheel, filling in the working chamber of the working liquid by centrifugal force and leaves work round by the pump wheel entrance small radius are accelerated by pressure into the larger radius of the pump wheel at the same time, the momentum of the liquid outlet, which generate incremental coupling pump wheel input mechanical energy is transformed into kinetic energy of liquid: when working liquid carrying the kinetic energy of liquid from the pump impeller outlet rushed across the turbine, the flow channel is formed along the vortex blade Tuo the centripetal flow, while the release of the liquid kinetic energy into mechanical can drive the turbine rotation and drive load work.
