Maintenance of German couplet coupler

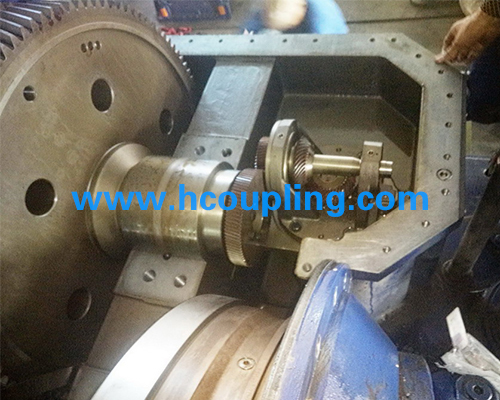

R18K.500M German couplet coupler maintenance

The maintenance contents include the overall maintenance and maintenance of the equipment, the inspection of the pipeline, the replacement of the vulnerable parts, the replacement of the spare parts and the installation and commissioning of the equipment.

The substance of the coupler is the combination of a centrifugal pump and a turbine. It is mainly composed of the input shaft, the output shaft, the pump wheel, the turbine, the outer light, the auxiliary chamber and the safety protection device. The input shaft is connected with the power machine, and the other end is connected to the output shaft end of pump Tuo: connected to the turbine, and the other end of the working machine. The pump wheel and the turbine are arranged symmetrically, and a certain number of blades are arranged in the wheel. Light outside and the pump wheel is fixedly connected into the sealed cavity, filling working fluid to transfer the power; when the prime mover driven by the input shaft rotary pump wheel, filling in the working chamber of the working liquid by centrifugal force and leaves work round by the pump wheel entrance small radius are accelerated by pressure into the larger radius of the pump wheel at the same time, the momentum of the liquid outlet, which generate incremental coupling pump wheel input mechanical energy is transformed into kinetic energy of liquid: when working liquid carrying the kinetic energy of liquid from the pump impeller outlet rushed across the turbine, the flow channel is formed along the vortex blade Tuo the centripetal flow, while the release of the liquid kinetic energy into mechanical can drive the turbine rotation and drive load work. In this way, the liquid circulate in the working chamber again and again, so the output and input can be flexibly linked by liquid kinetic energy without any direct mechanical connection. Baoding Hengsheng hydraulic coupler manufacturing company specializing in the production of various types of yox, yox production with light load starting, overload protection, to reduce the impact, isolation of torsional vibration, coordination of multi machine drive, flexible braking and energy balance function, can effectively protect the motor and the working machine is not damaged. Widely used in mining, metallurgy, coal, electricity, oil, leather, construction, building materials, chemical industry, textile, light industry, woodworking, transportation and other industries.
