Production and processing of various type coupler spoon sleeves
On door guidance and installation of our professional and technical personnel

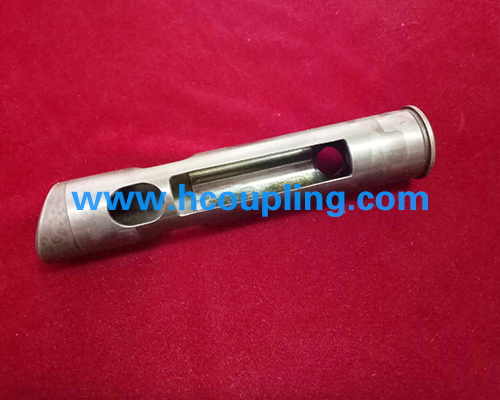

The spoon sleeve of the coupler is connected with the active shaft, and the active shaft is connected to the speed increase gear of the motive. The turbine is connected to the fan shaft through a driven shaft. Two chambers are formed in the impeller and the turbine, and there are radial blades in the chamber, and the blades are generally 20~40. There is a working oil in the chamber between the pump wheel and the turbine to form a circular channel. The pump wheel is driven directly by the active shaft, and its function is to convert the mechanical energy of the active wheel into the kinetic energy of the working liquid. It plays a role in improving the energy of the liquid. When the liquid increases energy in the pump wheel, it will impulse the turbine to rotate along the circulating channel and under the action of centrifugal force, and turn the kinetic energy into mechanical energy, and drive the driven shaft.
